The prototype is currently tested at the laboratory of Hydraulics "Giorgio Bidone", within a hydraulic tank 55 m long, 0.6 m wide and about 1 m deep. A piston beater (wave generator) allows the waves realization (regular and irregular) over a wide range of widths (from a few millimeters up to 15 cm) and periods (0.2-6 s).

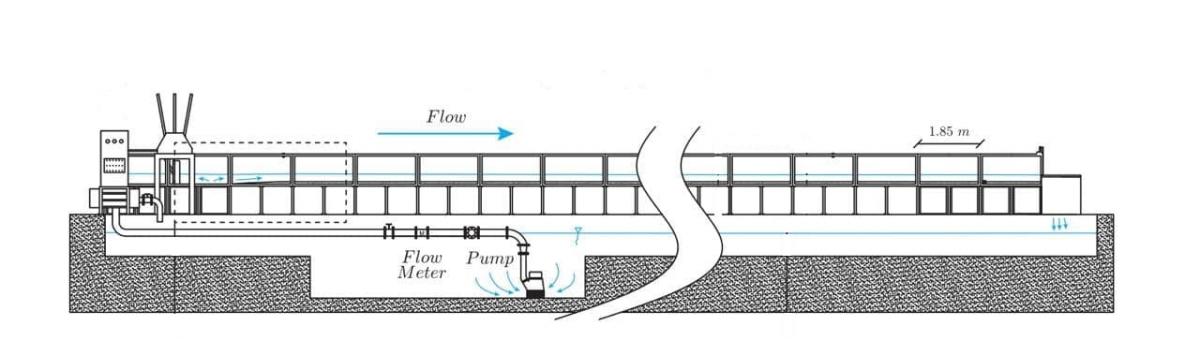

Technical scheme of the hydraulic channel.





The tank also allows the study of waves superimposed on currents, with these latter generated by a recirculation system allowed by an underground tank. This tank is equipped with resistive probes that allow to monitor the evolution of the waves along the channel.

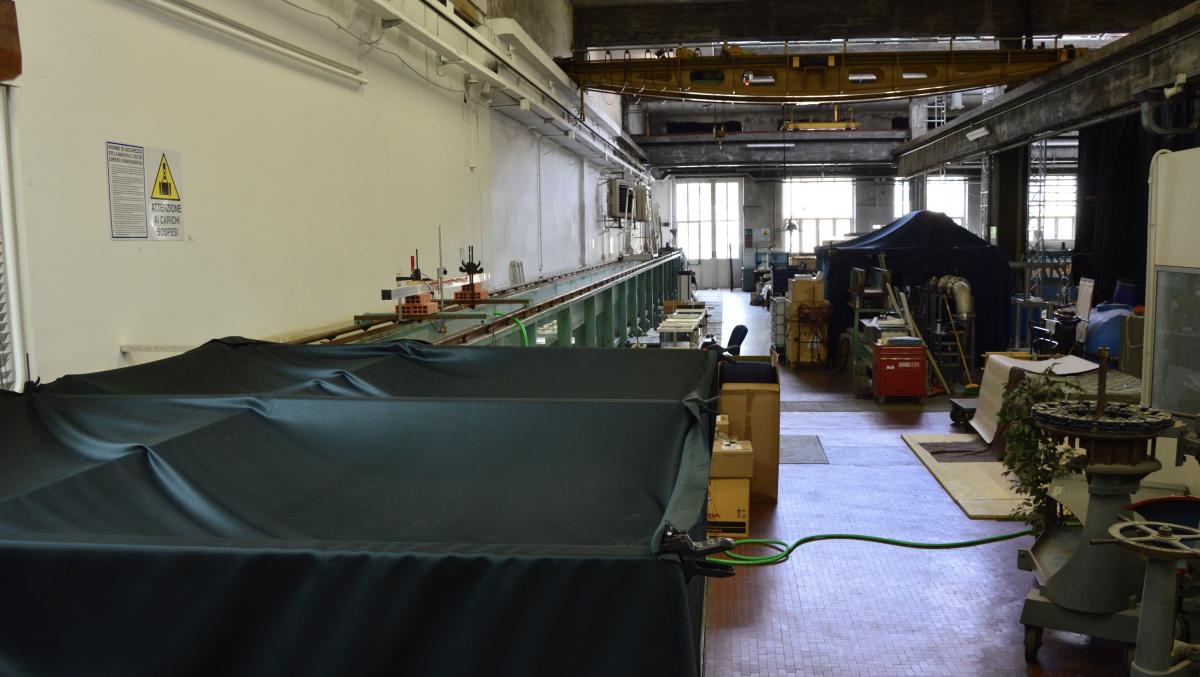

Laboratory of Hydraulics "G. Bidone" (POLITO).
